Powertrain families
N43/N46 petrol I4 · M54/N52/N53 petrol I6 · N62 petrol V8 · M47/N47/M57 diesel · N52 petrol I6
5 Series (E60/E61) — Touring
2004–2010
Editorially reviewedReviewed 2026-08-10; market and model-year scope is stated in the record sources.
- Internal code
- E61
- Production
- Touring production from 2004 to 2010
- Body style
- 5-door wagon
- Platform
- longitudinal layout · rear- or all-wheel drive
Body variants
5 Series → E60/E61 → Touring
5 Series E60/E61: history, design and engineering
How this generation came about, what made it different and how the selected touring fits into the family.
E60 deliberately broke with the conservative visual language of the E39. Its sculpted body and pared-back cabin announced a more experimental BMW, while iDrive moved many secondary functions into a single controller and display — a controversial step that later became normal across the industry.
The engineering was just as ambitious: an aluminium front structure, active steering, adaptive chassis systems and an increasingly broad engine range sat beneath the new design. E60 Sedan and E61 Touring served different practical roles, while the V10 M5 became the most extreme expression of the generation.
The family consists of E60 Sedan, E61 Touring and the China-specific long-wheelbase sedan rather than one universal body. Touring's rear air suspension and cargo systems are body-specific, while the extended car adds 140 mm between the axles for rear passengers. M5 E60/E61, regular xDrive cars and the Hydrogen 7-related technology narratives must not be mixed into ordinary derivative data.
2003–2010generation lifecycle
3body branches
5engine/drive families
15range designations
E60/E61factory code
longitudinal layout · rear- or all-wheel drivearchitecture
Touring: dimensions and packaging
Dimensions can change with body, market and model year, so this page keeps them tied to the exact factory branch.
Length4,843 mm
Width1,846 mm
Height1,491 mm
Wheelbase2,888 mm
Luggage500–1,650 L
Fuel tank70 L
Seats5
Doors5-door wagon
| Body | Code | Production | Doors / seats | Length | Luggage |
|---|---|---|---|---|---|
| Sedan | E60 | 2003–2010 | 4-door sedan / 5 | 4,841 mm | 520 L |
| Touring | E61 | 2004–2010 | 5-door wagon / 5 | 4,843 mm | 500–1,650 L |
| Long-wheelbase Sedan | E60 L | 2006–2010 | 4-door long-wheelbase sedan / 5 | 4,981 mm | 520 L |
Engines and powertrains
The generation could span very different engines and drivetrains. The table keeps output, gearbox, market and production period together.
Factory modification matrix
Documented touring applications; output and availability remain market- and model-year-specific.
| Model | Years | Engine | Output | Transmission | Drive | Market | Source |
|---|---|---|---|---|---|---|---|
| 520i / 523i / 525i | 2003–2010 | M54 / N43 / N52 / N53 | 170–218 PS | 6MT / 6AT | RWD / xDrive | Global range | The history of the BMW 5 Series |
| 528i / 530i | 2003–2010 | N52 / N53 | 230–272 PS | 6MT / 6AT | RWD / xDrive | Global range | The history of the BMW 5 Series |
| 535i / 540i / 545i / 550i | 2003–2010 | N54 I6 / N62 V8 | 306–367 PS | 6MT / 6AT | RWD / xDrive | Global range | The history of the BMW 5 Series |
| 520d / 525d | 2005–2010 | M47 / N47 / M57 | 163–197 PS | 6MT / 6AT | RWD / xDrive | Europe | The history of the BMW 5 Series |
| 530d / 535d | 2003–2010 | M57D30 | 218–286 PS | 6MT / 6AT | RWD / xDrive | Global range | The history of the BMW 5 Series |
| M5 | 2005–2010 | S85B50 V10 | 507 PS | 6MT / 7SMG | RWD | Global range | The history of the BMW 5 Series |
Factory designations
520i · 523i · 525i · 528i · 530i · 540i · 545i · 550i · 520d · 525d · 530d · 535d · 523Li · 525Li · 530Li
Petrol engines
Inline and V engines are grouped by engine family, displacement, induction system and emissions specification.
Diesel derivatives
Where diesels were offered, output, injection generation and emissions hardware are recorded market by market.
How power reaches the road
Gearboxes, driven wheels and final-drive hardware changed with engine, market and production date.
Transmissions
Gearbox type and unit code follow engine, market and production date. Gear count alone does not identify the transmission.
Driven wheels
Catalog architecture: longitudinal layout · rear- or all-wheel drive. All-wheel-drive availability and hardware remain derivative-specific.
Final drive
Ratio, differential type and electronic control belong to the exact derivative and can differ on performance models.
What changed underneath
Suspension, brakes, safety systems and electronics evolved across the range, even when cars shared the same basic architecture.
Body-branch dimensions
- E60: 4,841 mm × 1,846 mm × 1,468 mm
- E61: 4,843 mm × 1,846 mm × 1,491 mm
- E60 L: 4,981 mm × 1,846 mm × 1,468 mm
Body & suspension
- Mounting points and geometry follow the body branch
- Springs and dampers follow axle load and chassis package
- Wheels and permitted loads follow the factory label
Brakes & steering
- Brake size follows engine and equipment
- Assistance type and steering ratio can change
- ABS/DSC generation follows model year
Passive safety
- Airbag count varies by market and year
- SRS parts are VIN-specific
- Structural repairs require factory procedures
Electronics
- Vehicle-bus generations changed during production
- Control-unit software levels must remain compatible
- Retrofits are recorded separately from factory equipment
How the generation evolved
The important launches, additions and updates did not always happen at the same time for every body or market.
Sedan and Touring
E60 launched first, followed by the E61 Touring body.
Long wheelbase and LCI
China received factory Li models; the worldwide range then underwent its lifecycle update.
Lifecycle update
BMW revised the exterior, iDrive controls, EfficientDynamics measures and major parts of the engine range.
Generation transition
E60/E61 and the first Chinese long-wheelbase branch gave way to the F-generation range.
The versions that stood apart
Performance models, option packages and regional editions may look related, but their engineering and production identity can be very different.
Sedan
E60E60 was the launch sedan of the fifth 5 Series generation, combining an aluminium front structure with the steel passenger cell and a new iDrive-based electronic architecture. Engines/drive: N43/N46 petrol I4, M54/N52/N53 petrol I6, N62 petrol V8, M47/N47/M57 diesel.

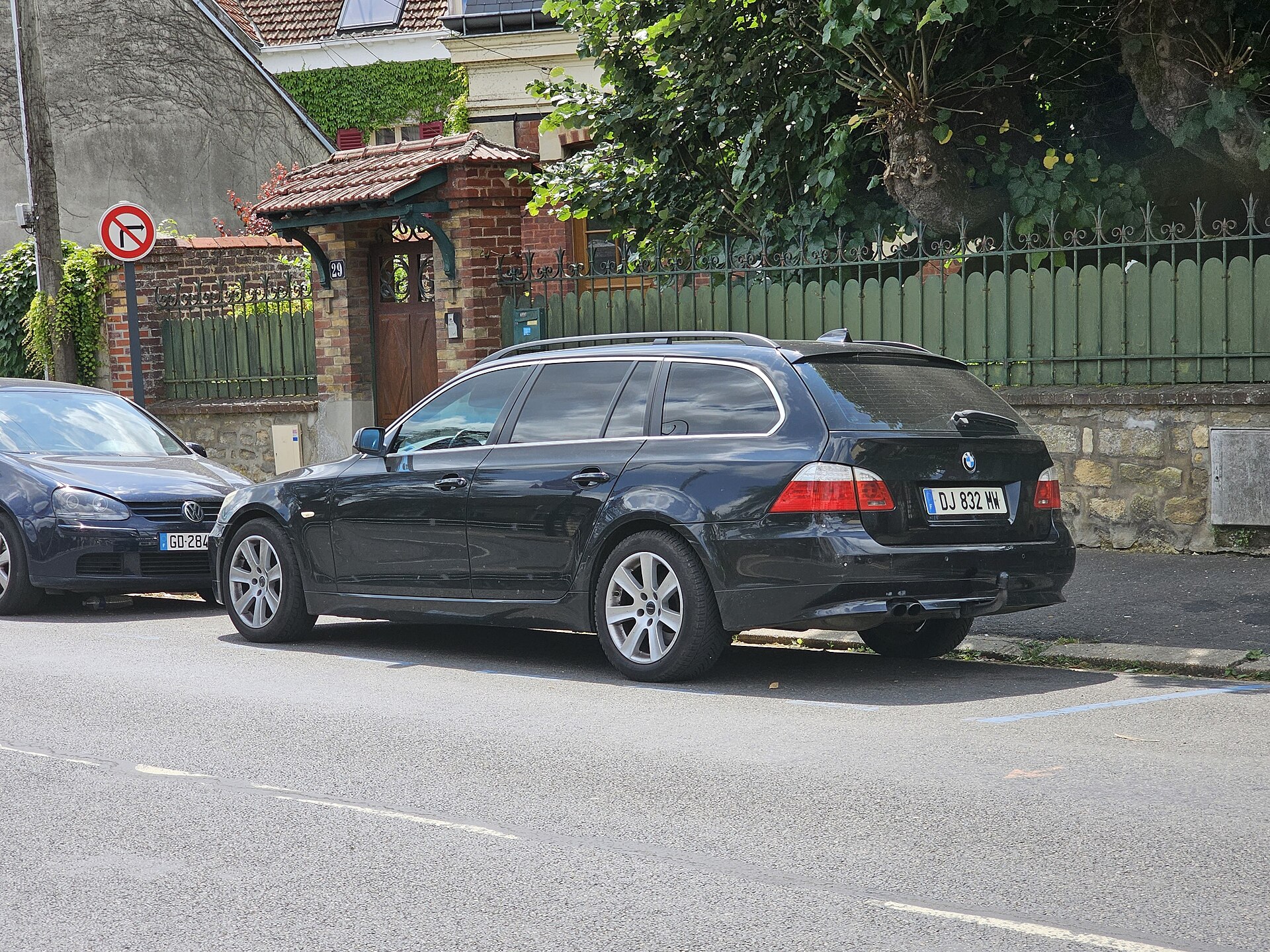

Touring
E61E61 translated the E60 platform into a five-door Touring with a separately opening rear window and up to approximately 1,650 litres of cargo capacity. Engines/drive: N43/N46 petrol I4, M54/N52/N53 petrol I6, N62 petrol V8, M47/N47/M57 diesel.
Long-wheelbase Sedan
E60 LThe China-specific E60 long-wheelbase sedan added 140 mm between the axles, taking the wheelbase to 3,028 mm and concentrating the gain in the rear compartment. Engines/drive: N52 petrol I6.
Inside the car
Cabin technology and standard equipment changed by country and year; a build sheet remains the best guide to one individual car.
Cabin & comfort
- Trim and seats follow option codes
- Climate systems vary by market
- Audio and navigation changed by model year
Lighting & assistance
- Lamp technology and modules follow production date
- Driver assistance cannot be inferred from buttons alone
- Regional rules affect lighting and warnings
What to check today
A practical starting point for inspecting and maintaining a car from this generation — not a diagnosis of an individual example.
Identify first
- Match VIN on body and documents
- Obtain the factory option list
- Confirm market and production date
Inspect the structure
- Check repairs and corrosion
- Assess suspension, brakes and tyres
- Compare fitted parts with factory specification
Mechanical history
- Read faults with compatible diagnostics
- Verify engine and transmission maintenance
- Separate invoices from unsupported verbal history
| Item | Interval / trigger | Catalog note |
|---|---|---|
| Engine oil & filter | CBS/factory schedule; time and mileage for historic cars | Oil approval follows the exact engine and market. |
| Brake fluid | Time-based factory schedule | ABS/DSC-compatible bleeding procedure is required after hydraulic work. |
| Coolant | Factory schedule and condition | Fluid specification and bleeding method are generation-specific. |
| Transmission & final drives | Unit type and operating conditions | Use the exact approved fluid; no one interval fits every derivative. |
How to identify the exact car
The badge and registration year tell only part of the story; production date, body code, engine and factory options complete it.
- Factory body codes
- E60 — Sedan; E61 — Touring; E60 L — Long-wheelbase Sedan
- Range designations
- 520i, 523i, 525i, 528i, 530i, 540i, 545i, 550i, 520d, 525d, 530d, 535d, 523Li, 525Li, 530Li
- Powertrain families
- N43/N46 petrol I4, M54/N52/N53 petrol I6, N62 petrol V8, M47/N47/M57 diesel, N52 petrol I6
- VIN
- Identifies model, plant and production branch and keys the parts catalog and factory equipment record.
- Production date
- More useful than first-registration year when choosing parts and locating technical revisions.
- Type code
- Refines engine, body, market and transmission combination.
- Option codes
- Confirm factory equipment; later retrofits are recorded separately.
- Unit number
- Supports engine or gearbox originality checks and component applicability.
Where the information comes from
The story is mapped through English Wikipedia and its bibliography, then important dates and technical claims are checked against BMW material.
- 01BMW 5 Series (E60)Wikipedia contributors
English-language secondary overview of the generation, body programme, powertrains and production chronology; key claims are cross-checked against the factory sources below.
- 02The history of the BMW 5 SeriesBMW Group PressClub
Official generation history through E60, including architecture and product positioning.
- 03BMW Group Introducing New Models for ChinaBMW Group PressClub
Factory confirmation of the 523Li, 525Li and 530Li long-wheelbase branch.
Notes and limitations
- Bodies and long-wheelbase branches are separate; a commercial engine badge does not replace the factory body code.
- Modification output, transmission and drive describe the worldwide range; verify the exact market and production date through VIN-linked factory literature.
- M5 has its own technical identity and parallel BMW M catalog branch even when it uses a related 5 Series body shell.
3 primary references · market differences documentedPhotography: Damian B Oh, CC BY-SA 4.0 · Wikimedia Commons. Rights checked 2026-08-06; wikimedia commons 1,800 px derivative downloaded; local 640 px and 1,280 px avif versions created without cropping.Updated 6 August 2026
