Powertrain families
M10 inline-four · M30 inline-six · M90 inline-six
5 Series (E12) — Sedan
1972–1981
Editorially reviewedReviewed 2026-08-10; market and model-year scope is stated in the record sources.
- Internal code
- E12
- Production
- June 1972 – July 1981
- Body style
- 4-door sedan
- Platform
- longitudinal layout · rear-wheel drive
Body variants
5 Series → E12 → Sedan
5 Series E12: history, design and engineering
How this generation came about, what made it different and how the selected sedan fits into the family.
E12 was the first car to carry the 5 Series name and the first clear expression of BMW's modern series hierarchy. Launched in 1972, the four-door saloon sat between the smaller sporting cars and the company's large luxury models, establishing a role the 5 Series has kept ever since.
The shape remained recognisably consistent, but the car evolved underneath it. Four-cylinder models opened the range, six-cylinder versions added the performance expected of a larger BMW, and the late M535i showed how far the saloon could be developed before the first M5 existed.
E12 used one factory four-door body, but its mechanical range evolved from four-cylinder carburettor cars to fuel-injected sixes and the M-developed M535i. North American emissions equipment, bumpers and model names differ materially from European cars, so a badge alone cannot identify engine output or body dimensions. Motorsport and tuner derivatives remain separate from BMW's series-production matrix.
1972–1981generation lifecycle
1body branches
3engine/drive families
7range designations
E12factory code
longitudinal layout · rear-wheel drivearchitecture
Sedan: dimensions and packaging
Dimensions can change with body, market and model year, so this page keeps them tied to the exact factory branch.
Length4,620 mm
Width1,690 mm
Height1,425 mm
Wheelbase2,636 mm
Luggage≈ 440 L
Fuel tank70 L
Seats5
Doors4-door sedan
| Body | Code | Production | Doors / seats | Length | Luggage |
|---|---|---|---|---|---|
| Sedan | E12 | 1972–1981 | 4-door sedan / 5 | 4,620 mm | ≈ 440 L |
Engines and powertrains
The generation could span very different engines and drivetrains. The table keeps output, gearbox, market and production period together.
Factory modification matrix
Documented sedan applications; output and availability remain market- and model-year-specific.
| Model | Years | Engine | Output | Transmission | Drive | Market | Source |
|---|---|---|---|---|---|---|---|
| 518 | 1974–1981 | M10B18 | 90 PS | 4MT / 5MT | RWD | Europe | BMW 5 Series (E12) |
| 520 / 520i | 1972–1981 | M10B20 / M20B20 | 115–125 PS | 4MT / 5MT / 3AT | RWD | Global range | BMW 5 Series (E12) |
| 525 | 1973–1981 | M30B25 | 145–150 PS | 4MT / 5MT / 3AT | RWD | Global range | BMW 5 Series (E12) |
| 528 / 528i | 1975–1981 | M30B28 | 165–184 PS | 4MT / 5MT / 3AT | RWD | Global range | BMW 5 Series (E12) |
| 530i (US) | 1975–1978 | M30B30 | 176 hp | 4MT / 3AT | RWD | North America | BMW 5 Series (E12) |
| M535i | 1979–1981 | M90B35 | 218 PS | 5MT | RWD | Europe | BMW 5 Series (E12) |
Factory designations
518 · 520 · 520i · 525 · 528 · 528i · M535i
Petrol engines
Inline and V engines are grouped by engine family, displacement, induction system and emissions specification.
Diesel derivatives
Where diesels were offered, output, injection generation and emissions hardware are recorded market by market.
How power reaches the road
Gearboxes, driven wheels and final-drive hardware changed with engine, market and production date.
Transmissions
Gearbox type and unit code follow engine, market and production date. Gear count alone does not identify the transmission.
Driven wheels
Catalog architecture: longitudinal layout · rear-wheel drive. All-wheel-drive availability and hardware remain derivative-specific.
Final drive
Ratio, differential type and electronic control belong to the exact derivative and can differ on performance models.
What changed underneath
Suspension, brakes, safety systems and electronics evolved across the range, even when cars shared the same basic architecture.
Body-branch dimensions
- E12: 4,620 mm × 1,690 mm × 1,425 mm
Body & suspension
- Mounting points and geometry follow the body branch
- Springs and dampers follow axle load and chassis package
- Wheels and permitted loads follow the factory label
Brakes & steering
- Brake size follows engine and equipment
- Assistance type and steering ratio can change
- ABS/DSC generation follows model year
Passive safety
- Airbag count varies by market and year
- SRS parts are VIN-specific
- Structural repairs require factory procedures
Electronics
- Vehicle-bus generations changed during production
- Control-unit software levels must remain compatible
- Retrofits are recorded separately from factory equipment
How the generation evolved
The important launches, additions and updates did not always happen at the same time for every body or market.
5 Series launch
The E12 entered production as the successor to the Neue Klasse sedans.
Range expansion
Six-cylinder, fuel-injected and ultimately M535i derivatives broadened the single-body range.
M535i flagship
BMW Motorsport combined the E12 sedan with the M30 engine and a dedicated chassis and appearance specification.
Production end
E12 production ended as E28 assumed the 5 Series role.
The versions that stood apart
Performance models, option packages and regional editions may look related, but their engineering and production identity can be very different.
Sedan
E12The sole factory E12 body was a four-door executive sedan. It established the 5 Series name and BMW's modern three-digit model designation. Engines/drive: M10 inline-four, M30 inline-six, M90 inline-six.
Inside the car
Cabin technology and standard equipment changed by country and year; a build sheet remains the best guide to one individual car.
Cabin & comfort
- Trim and seats follow option codes
- Climate systems vary by market
- Audio and navigation changed by model year
Lighting & assistance
- Lamp technology and modules follow production date
- Driver assistance cannot be inferred from buttons alone
- Regional rules affect lighting and warnings
What to check today
A practical starting point for inspecting and maintaining a car from this generation — not a diagnosis of an individual example.
Identify first
- Match VIN on body and documents
- Obtain the factory option list
- Confirm market and production date
Inspect the structure
- Check repairs and corrosion
- Assess suspension, brakes and tyres
- Compare fitted parts with factory specification
Mechanical history
- Read faults with compatible diagnostics
- Verify engine and transmission maintenance
- Separate invoices from unsupported verbal history
| Item | Interval / trigger | Catalog note |
|---|---|---|
| Engine oil & filter | CBS/factory schedule; time and mileage for historic cars | Oil approval follows the exact engine and market. |
| Brake fluid | Time-based factory schedule | ABS/DSC-compatible bleeding procedure is required after hydraulic work. |
| Coolant | Factory schedule and condition | Fluid specification and bleeding method are generation-specific. |
| Transmission & final drives | Unit type and operating conditions | Use the exact approved fluid; no one interval fits every derivative. |
How to identify the exact car
The badge and registration year tell only part of the story; production date, body code, engine and factory options complete it.
- Factory body codes
- E12 — Sedan
- Range designations
- 518, 520, 520i, 525, 528, 528i, M535i
- Powertrain families
- M10 inline-four, M30 inline-six, M90 inline-six
- VIN
- Identifies model, plant and production branch and keys the parts catalog and factory equipment record.
- Production date
- More useful than first-registration year when choosing parts and locating technical revisions.
- Type code
- Refines engine, body, market and transmission combination.
- Option codes
- Confirm factory equipment; later retrofits are recorded separately.
- Unit number
- Supports engine or gearbox originality checks and component applicability.
Where the information comes from
The story is mapped through English Wikipedia and its bibliography, then important dates and technical claims are checked against BMW material.
- 01BMW 5 Series (E12)Wikipedia contributors
English-language secondary overview of the generation, body programme, powertrains and production chronology; key claims are cross-checked against the factory sources below.
- 02BMW 5 Series (E12)BMW Group Classic
Official production period, model history, factories and total volume.
Notes and limitations
- Bodies and long-wheelbase branches are separate; a commercial engine badge does not replace the factory body code.
- Modification output, transmission and drive describe the worldwide range; verify the exact market and production date through VIN-linked factory literature.
- M5 has its own technical identity and parallel BMW M catalog branch even when it uses a related 5 Series body shell.

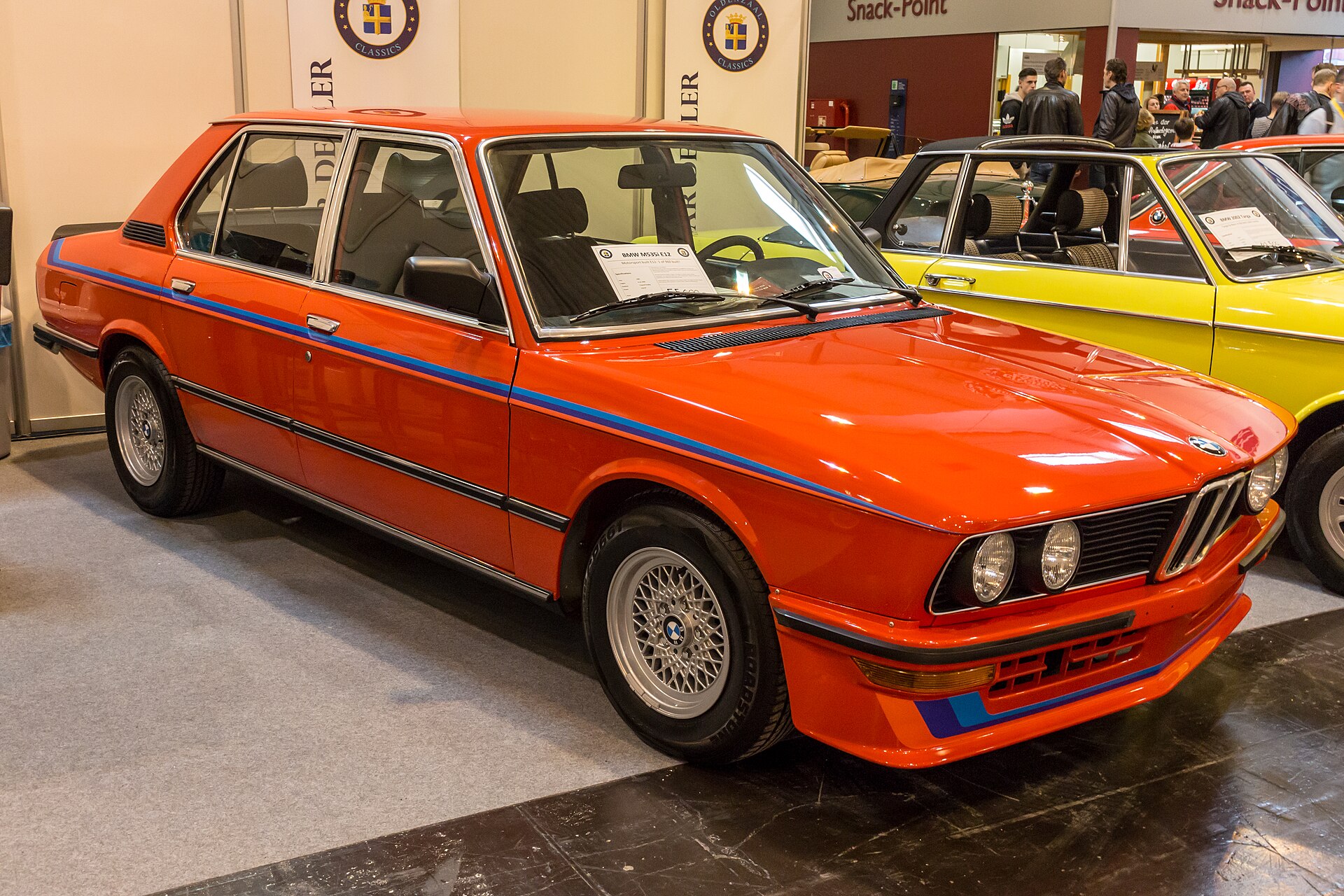

2 primary references · market differences documentedPhotography: Matti Blume, CC BY-SA 4.0 · Wikimedia Commons. Rights checked 2026-08-06; wikimedia commons 1,800 px derivative downloaded; local 640 px and 1,280 px avif versions created without cropping.Updated 6 August 2026
